ASTRO/3

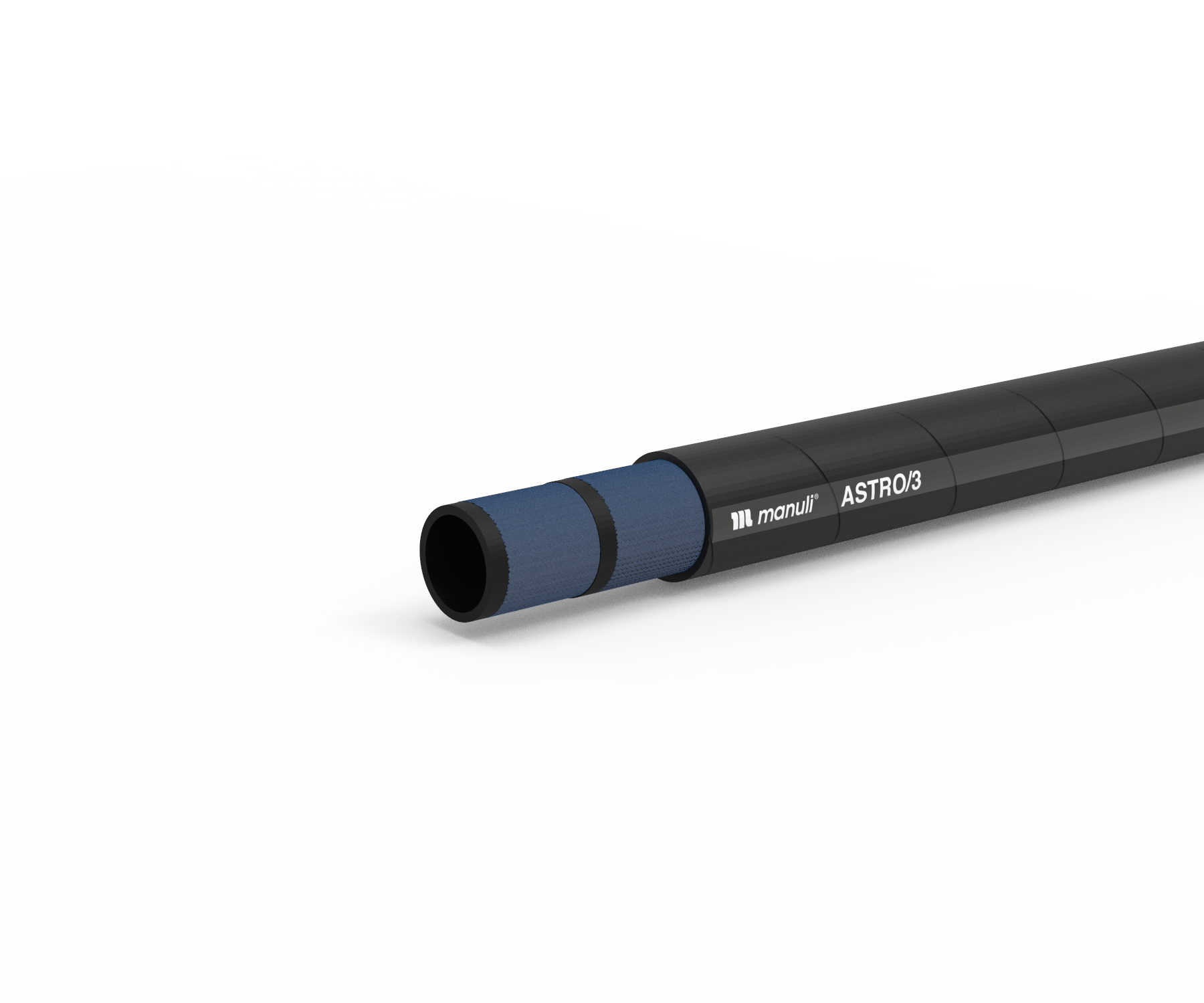

INTEGRATED, RELIABLE HOSE ASSEMBLY
KEY FEATURES
• High flexibility of hose structure
• Wide range of fluid compatibility
• Low bend radii and compactness
• Exceeds performance of SAE 100 R3
APPLICATIONS & FLUIDS
- Hydraulics: low-medium pressure lines, return lines
- Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
125 °C, 257 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
One high tensile textile braid
COVER
Weather resistant synthetic rubber
APPLICABLE SPECS
EN 854 3TE; ISO 4079 3TE
TYPE APPOVALS
DNV-GL
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H09046006* | 6 | -4 | 1/4″ | – | – | 14.2 | 0.56 | 145 | 2,100 | 580 | 8,410 | 45 | 1.77 | 150 | 0.10 | MF+M00310-04 | – |
| H09046008* | 8 | -5 | 5/16″ | – | – | 16.6 | 0.65 | 130 | 1,880 | 520 | 7,540 | 55 | 2.17 | 210 | 0.14 | MF+M00310-05 | – |
| H09046010* | 10 | -6 | 3/8″ | – | – | 18.2 | 0.72 | 110 | 1,590 | 440 | 6,380 | 70 | 2.76 | 230 | 0.15 | MF+M00310-06 | – |
| H09046012* | 12 | -8 | 1/2″ | – | – | 21.5 | 0.85 | 93 | 1,340 | 372 | 5,390 | 85 | 3.35 | 290 | 0.19 | MF+M00310-08 | – |
| H09046016* | 16 | -10 | 5/8″ | – | – | 25.6 | 1.01 | 80 | 1,160 | 320 | 4,640 | 105 | 4.13 | 395 | 0.27 | MF+M00310-10 | – |
| H09046019* | 19 | -12 | 3/4″ | – | – | 28.8 | 1.13 | 70 | 1,010 | 280 | 4,060 | 130 | 5.12 | 455 | 0.31 | MF+M00321-12 | – |
| H09046025* | 25 | -16 | 1″ | – | – | 35.4 | 1.39 | 55 | 790 | 220 | 3,190 | 150 | 5.91 | 580 | 0.39 | MF+M00310-16 | – |
| H09046032* | 31 | -20 | 1.1/4″ | – | – | 42.5 | 1.67 | 45 | 650 | 180 | 2,610 | 190 | 7.48 | 740 | 0.50 | MF+M00310-20 | – |
| H09046040* | 38 | -24 | 1.1/2″ | – | – | 49.4 | 1.94 | 40 | 580 | 160 | 2,320 | 240 | 9.45 | 920 | 0.62 | MF+M00910-24 | – |
| H09046051* | 51 | -32 | 2″ | – | – | 62.2 | 2.45 | 33 | 470 | 132 | 1,910 | 300 | 11.81 | 1,140 | 0.77 | MF+M00910-32 | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
