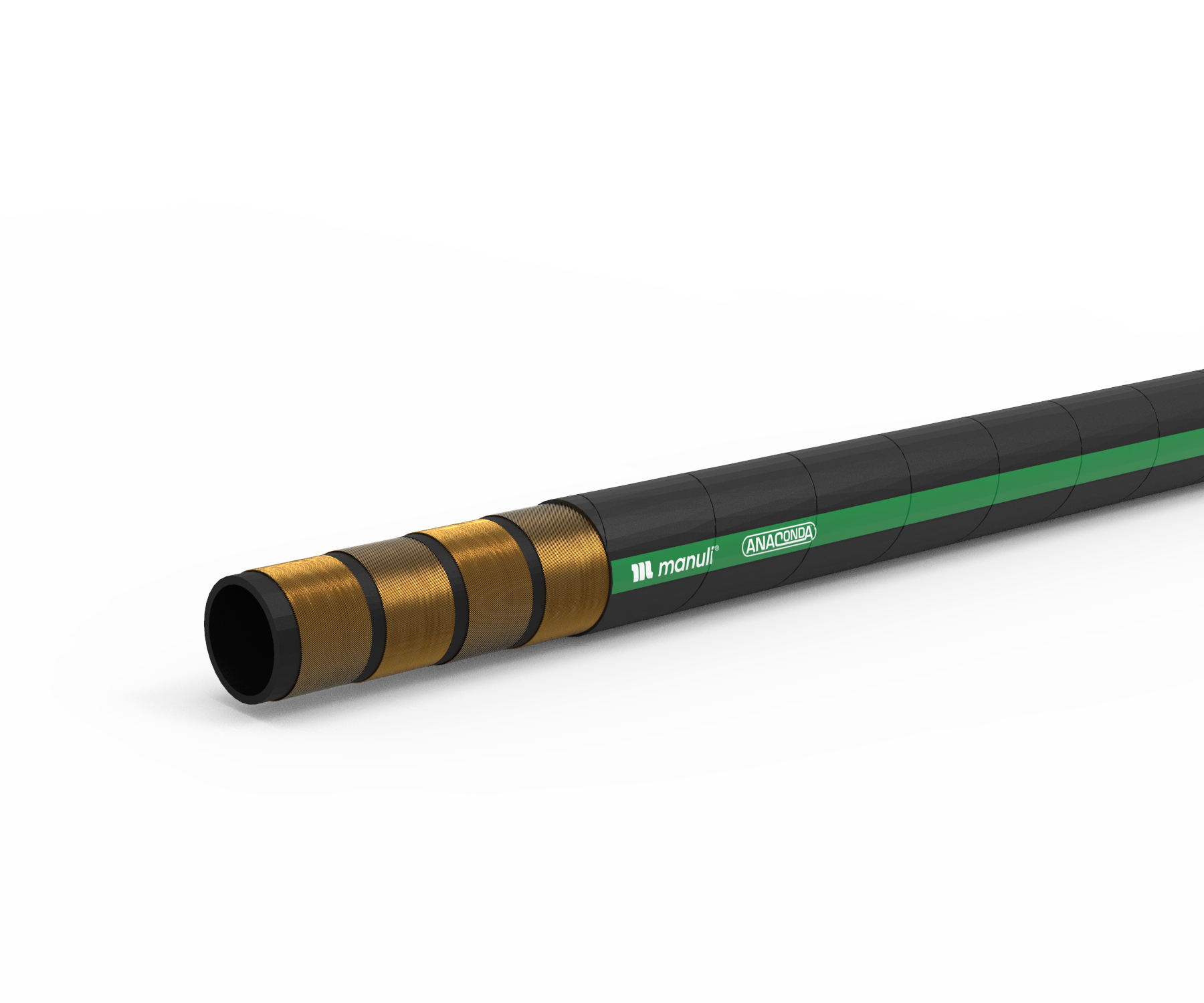

ANACONDA
HEAVY DUTY, LOW BENDING FORCE
KEY FEATURES
• Low bending force to suit difficult undercarriage installations
• Bend radius which exceeds the standard requirements
• Good flexibility across the whole temperature range
• Easy mounting in static configurations
• High impulse resistance according to ISO 18752
• No-skive fitting solution available
• Isobaric pressure rating for easy selection and product management
APPLICATIONS & FLUIDS
- High pressure hydraulic lines in hydrostatic transmissions
- Applications with installation constraints, short assemblies in static configurations, low bend radii in undercarriage applications
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Four high tensile steel spirals (six high tensile steel spirals DN 38 standard version)
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
ISO 18752 Grade C, exceeds SAE J517 R15, ISO 3862 R15
TYPE APPOVALS
MSHA; CU-TR
REMARKS
Sizes -12 and -16 are qualified to reduced bend radius with Interlock Plus fitting solution
-12: MBR = 110mm
-16: MBR = 150mm
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10132019* | 19 | -12 | 3/4” | 27.7 | 1.09 | 30.2 | 1.19 | 420 | 6,090 | 1,680 | 24,360 | 150 | 5.91 | 1,288 | 0.87 | IP+M01500-12 | SP+M05400-12 |
| H10132025* | 25 | -16 | 1” | 35.3 | 1.39 | 37.7 | 1.48 | 420 | 6,090 | 1,680 | 24,360 | 210 | 8.27 | 2,012 | 1.35 | IP+M01500-16 | SP+M05400-16 |
| H10132031* | 31 | -20 | 1.1/4” | 42.2 | 1.66 | 45.5 | 1.79 | 420 | 6,090 | 1,680 | 24,360 | 260 | 10.24 | 2,453 | 1.65 | IP+M01500-20 | SP+M05400-20 |
| H10132038* | 38 | -24 | 1.1/2” | 52.5 | 2.07 | 55.5 | 2.19 | 420 | 6,090 | 1,680 | 24,360 | 300 | 11.81 | 4,076 | 2.74 | IP+M01600-24 | – |
| H10132A38*† | 38 | -24 | 1.1/2” | 50.4 | 1.98 | 53.4 | 2.10 | 350 | 5,070 | 1,400 | 20,300 | 300 | 11.81 | 3,269 | 2.19 | IP+M01600-24 | – |
| † Compact hose | |||||||||||||||||
