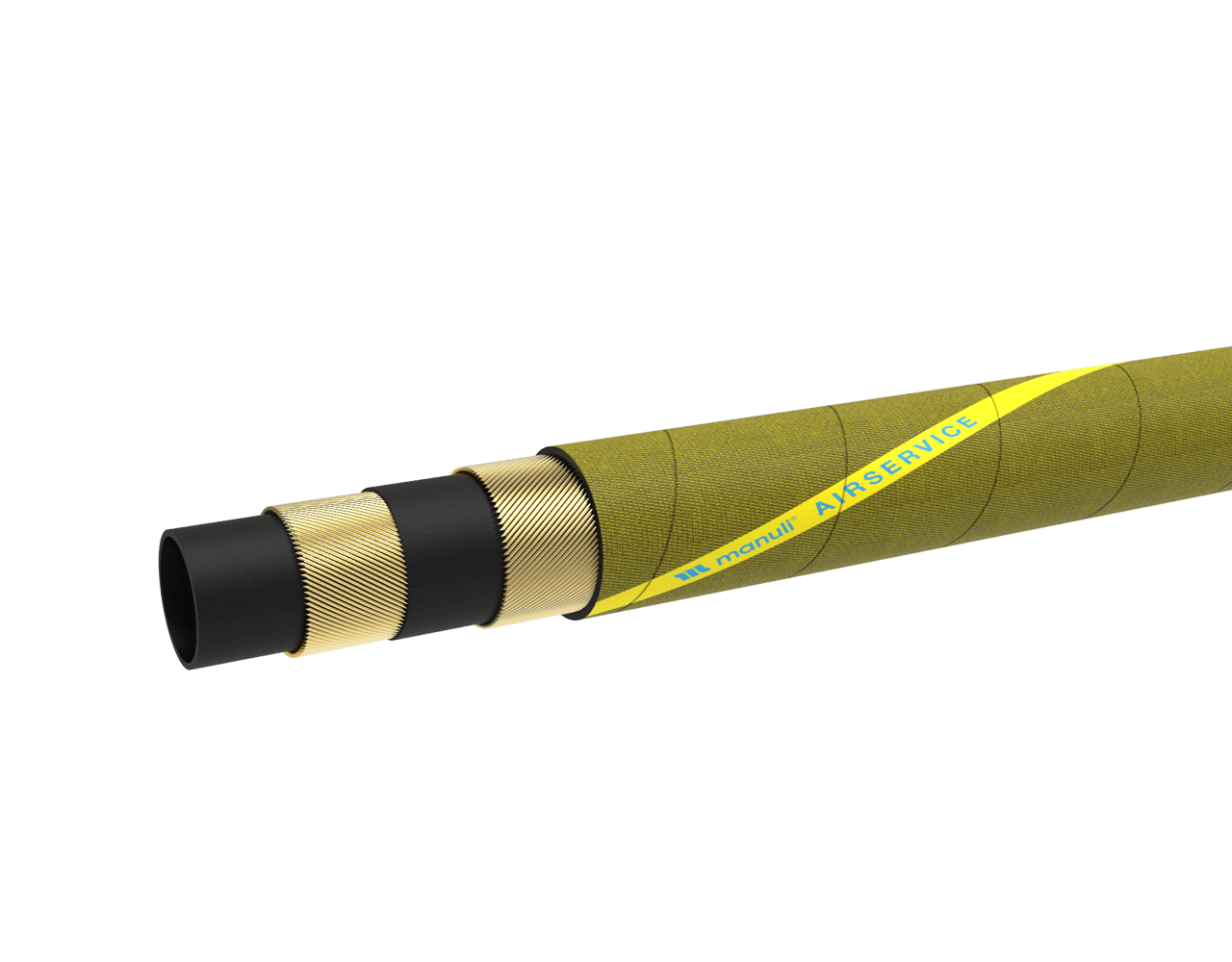

AIR COMPRESSOR HOSE, HEAVY DUTY
KEY FEATURES
• Heavy duty softwall delivery structure
• Robust hose structure
• Long lasting in severe applications
• Long length assemblies available – Max length: 60m
APPLICATIONS & FLUIDS
• High pressure compressed air and oil traces,to be used in mining, construction, etc. Typically used in compressed air systems and power transmission.
| CONTINUOUS SERVICE TEMPERATURE RANGE -40 °C, -40 °F 80 °C, 176 °F TUBE REINFORCEMENT COVER APPLICABLE SPECS STANDARD PACKAGING |

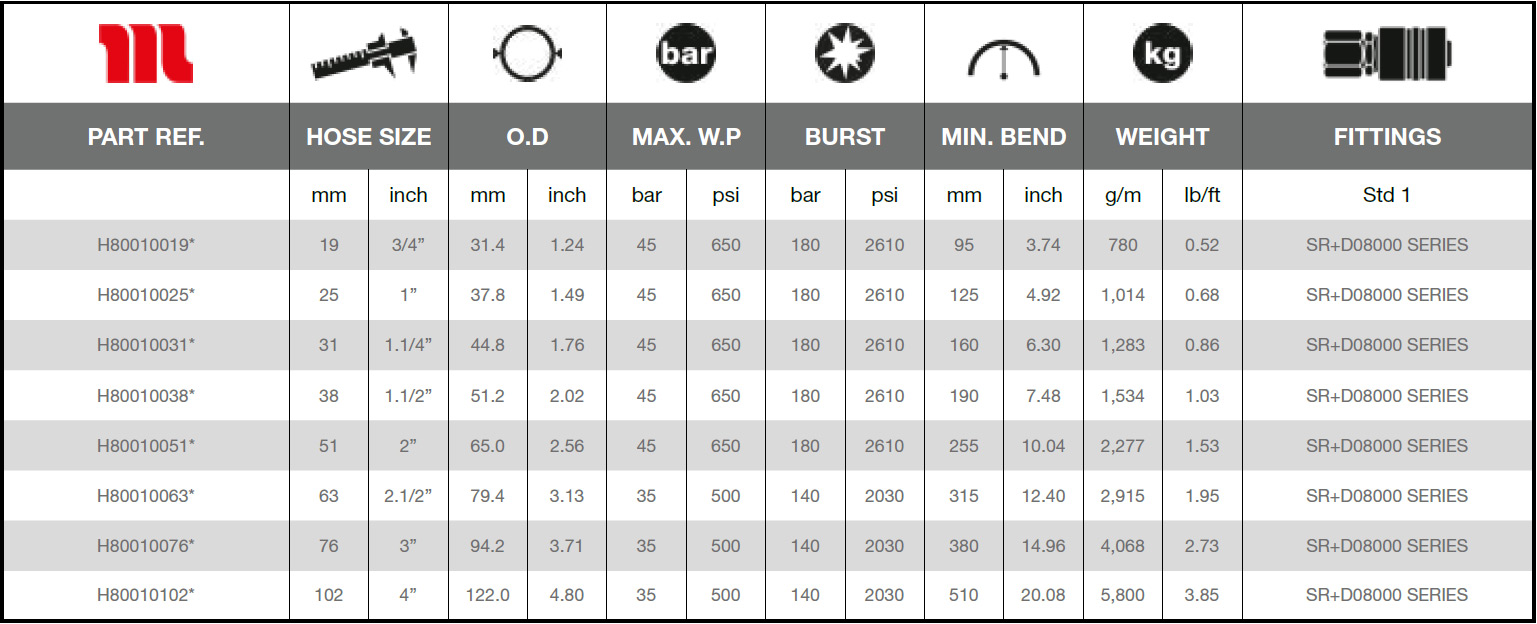

| TECHNICAL DATA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
||||||
| PART REF. | HOSE SIZE | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | ||||||
| mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | |
| H80010019* | 19 | 3/4” | 31.4 | 1.24 | 45 | 650 | 180 | 2,610 | 95 | 3.74 | 780 | 0.52 | SR+D08000 SERIES |
| H80010025* | 25 | 1” | 37.8 | 1.49 | 45 | 650 | 180 | 2,610 | 125 | 4.92 | 1,014 | 0.68 | SR+D08000 SERIES |
| H80010031* | 31 | 1.1/4” | 44.8 | 1.76 | 45 | 650 | 180 | 2,610 | 160 | 6.3 | 1,283 | 0.86 | SR+D08000 SERIES |
| H80010038* | 38 | 1.1/2” | 51.2 | 2.02 | 45 | 650 | 180 | 2,610 | 190 | 7.48 | 1,534 | 1.03 | SR+D08000 SERIES |
| H80010051* | 51 | 2” | 65.0 | 2.56 | 45 | 650 | 180 | 2,610 | 255 | 10.04 | 2,277 | 1.53 | SR+D08000 SERIES |
| H80010063* | 63 | 2.1/2” | 79.4 | 3.13 | 35 | 500 | 140 | 2030 | 315 | 12.4 | 2,915 | 1.95 | SR+D08000 SERIES |
| H80010076* | 76 | 3” | 94.2 | 3.71 | 35 | 500 | 140 | 2030 | 380 | 14.96 | 4,068 | 2.73 | SR+D08000 SERIES |
| H80010102* | 102 | 4” | 122.0 | 4.80 | 35 | 500 | 140 | 2030 | 510 | 20.08 | 5,800 | 3.85 | SR+D08000 SERIES |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
