ABRASERVICE/35 SD

REVERSE CYCLE DRILLING HOSE

KEY FEATURES
• High robustness of the hose structures
• Long lasting in severe applications
• High abrasion resistance of the tube compound
• Max Length: 60m

APPLICATIONS & FLUIDS
• Drilling slurry with stones and mixed materials during reverse cycle drilling operations

CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
80 °C, 176 °F

TUBE
NR/SBR rubber, antistatic rubber, abrasion resistant, thick tube

REINFORCEMENT
High tensile synthetic cord and steel helix body wire

COVER
Black antistatic abrasion resistance NR/SBR. Cover is pinpricked.

APPLICABLE SPECS
Manuli design, safety factor 3:1

STANDARD PACKAGING
Coil

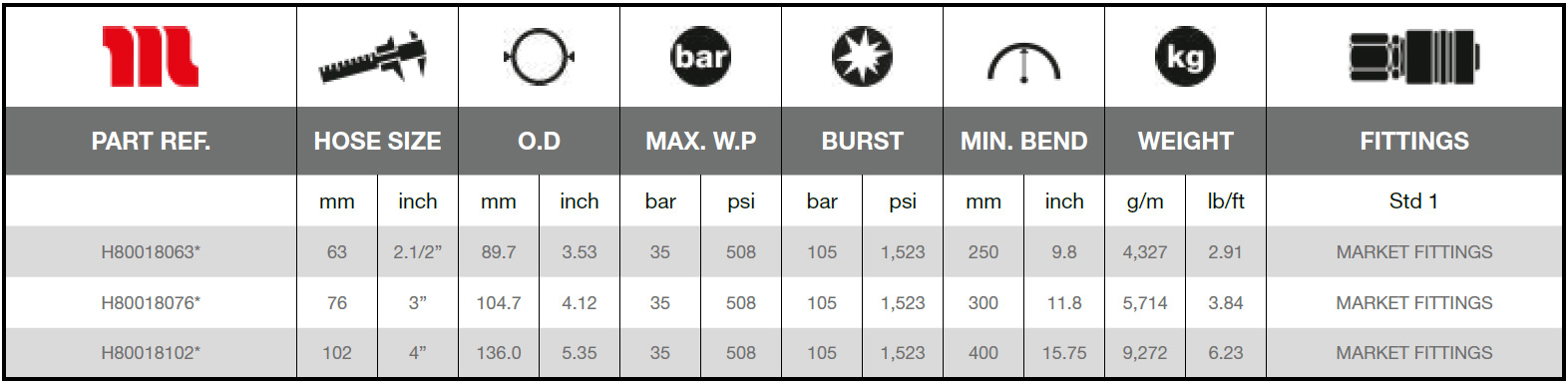

TECHNICAL DATA

PART REF.	HOSE SIZE		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1
H80018063*	63	2.1/2”	89.7	3.53	35	508	105	1,523	250	9.8	4,327	2.91	MARKET FITTINGS
H80018076*	76	3”	104.7	4.12	35	508	105	1,523	300	11.8	5,714	3.84	MARKET FITTINGS
H80018102*	102	4”	136.0	5.35	35	508	105	1,523	400	15.75	9,272	6.23	MARKET FITTINGS

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
