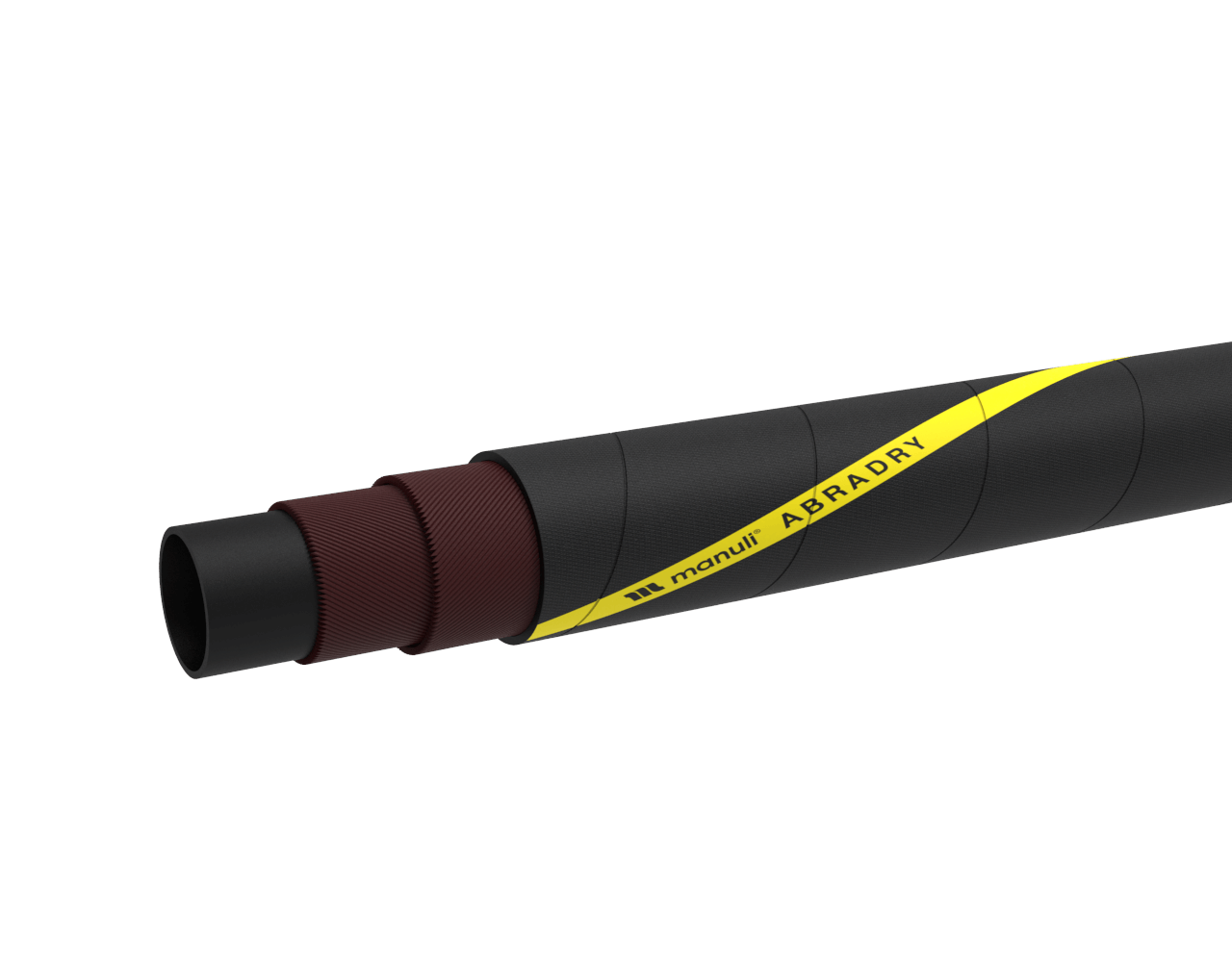

ABRADRY

LAYFLAT DELIVERY HOSE FOR CONCRETE, SAND, GRAVEL & OTHER ABRASIVE DRY MATERIALS

KEY FEATURES
• Layflat delivery structure
• Compact, lightweight and flexible
• Robust hose structure for longer life in severe applications
• Long length assemblies available – Max length: 61m (8” 40m)

APPLICATIONS & FLUIDS
• Delivery hose for dry abrasive materials, concrete, sand and gravel

CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
70 °C, 158 °F

TUBE
Black NR/SBR rubber

REINFORCEMENT
High tensile synthetic cord

COVER
Black synthetic SBR/NR/PVC rubber, anti-static, abrasion and weathering resistant

APPLICABLE SPECS
DIN 53516 70 ±5mm3

STANDARD PACKAGING
Coil

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
